Our flagship short path distillation kit.
“We have been cranking out golden distillate thanks in large part to our 20L short path distillation system . Our team has been using this machine consistently for two years and it still runs like a dream! Take care of it and it will take care of you! Thank you again ” – High Elevation Laboratories LLC

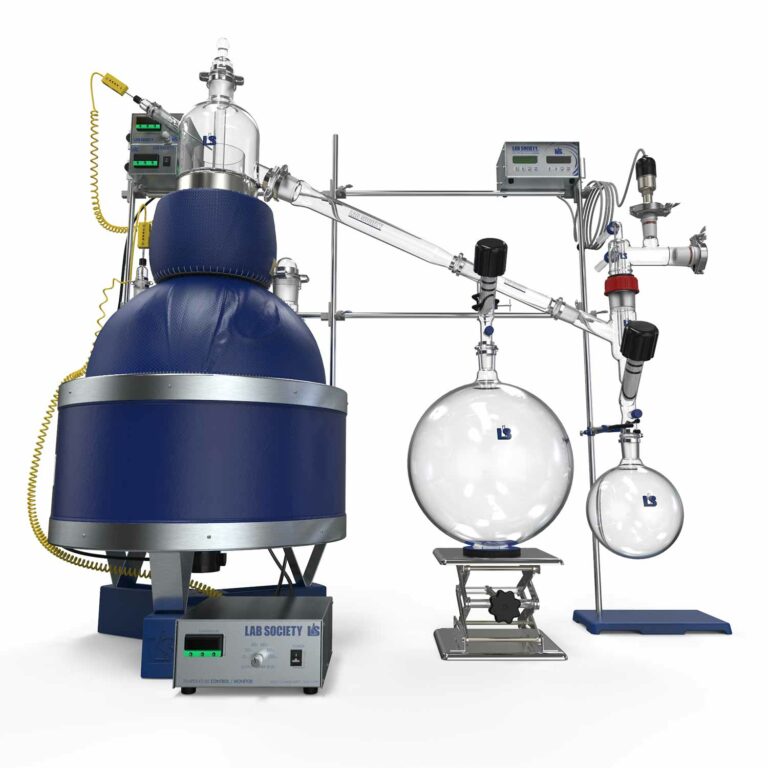

The culmination of years of short path development here , the G3/G3X series of short path kits offers you unparalleled throughput, potency, and system lifespan compared to other short path systems on the market. The G3/G3X Executive Short Path Distillation Kit series is available in 5L, 12L, and 20L configurations.
Each kit has been fully peer-reviewed and includes certifications for all electrical components. G3/G3X includes all glassware, supports, & clamps as well as electronic controllers and monitors needed for operation. We’re also including extensive documentation and SOPs for GMP integration, along with our outstanding technical support and the warranty.
The G3/G3X kit series is built around a full-bore design that promotes molecular flow and conductivity under high vacuum. This helps decrease pressure within the system as well as at the pump.
Each kit includes a silvered distillation head, which greatly improves thermal efficiency. Coupled with the full-bore design, boiling temperatures within the system have been decreased by 20° to 40°C compared to non-full-bore systems. This increase in thermal efficiency and throughput allows users to experience higher potencies, due to less residence time within the system.
Features
G3 (From G2) Improvements & Features
- Fully peer-reviewed system with certifications on electrical parts
- Single head, full-bore configuration for each system – promotes molecular flow, reduces operating temperature, and gives users increased ease-of-use compared to multi-head configurations
- Custom-cut ground glass drip tips – eliminate grease contamination and allow distillate to drip directly into the receiving flask
- All collection joints have been increased to 29/42 (29 mm) – to reduce potential clogging
- Condenser length has been extended for increased surface area and to accommodate larger collection flasks
- Improved heating mantle system with digital temperature and stir control
- Dual Temperature Monitoring allows the user to monitor temperature from two separate areas on the system such as the distillation head and cold trap, which improves thermal efficiency throughout the system, and allows for more producibility between runs
- Integrated supports built into each mantle – to make setup easy
- Full lattice rack included with each kit
- Reinforced mantle base – increases stability, dampens vibration, and provides better alignment for the whole system
- Improved glassware connections – utilizing ground glass joint to KF25 adapters for maximum vacuum capability and leak reduction
- Pinched thermocouple adapters for easy removal
- 1 year EliteLab® subscription included with each kit
G3X Improvements & Features
G3X kits include all of the improvements and features of the G3 kits as well as the following:
- Angled vacuum take-off valves – for both the swingarm and secondary collection port which allows for isolation from the rest of the system as well as unlimited fraction collection
- Secondary, liquid-cooled “cold finger” condenser – for greater condensation efficiency
- Jacketless primary condenser – for increased flow; keeps volatiles in vapor state for collection away from the main body fraction
Specifications
| G3/G3X Specs: | 5L | 12L | 20L | 20L G3X-R |
| Batch Capacity: | 2500mL (approx. 2500g dewaxed oil) | 6000mL (approx. 6000g dewaxed oil) | 10,000mL (approx. 10,000 grams dewaxed oil) | 10,000mL (approx. 10,000g dewaxed oil) |
| Optimum Capacity: | 900 – 1500mL | 3000 – 4000mL | 7,000 – 9,000mL | 7,000 – 9,000mL |
| Absolute Max. Capacity: | 3000mL | 8000mL | 12,0000mL | 12,000mL |
| Main Body Fraction Flow Rate: | 400 – 800 grams/hour | 1000 – 2000 grams/hour | 2000 – 4000 grams/hour | 2,000 – 4,500 grams/hour |
| Batch Duration: | 4 – 8 Hours
(estimated) |
4 – 10 Hours
(estimated) |
4 – 10 Hours
(estimated) |
4-10 Hours
(estimated) |
| Benchtop Size: | 30″ x 30″ x 30″ (not including pump/trap/circulator) | 43″ x 27″ x 40″ (not including pump/trap/circulator) | 45″ x 27″ x 42″ (not including pump/trap/circulator) | 45″ x 27″ x 42″ (not including pump/trap/circulator) |
| Distillation Head: | PDH-2S (silvered) | PDH-3 (silvered) | PDH-6 (silvered) | DH-150HE |
| G3/G3X Requirements: | 5L | 12L | 20L | 20L G3X-R |
| Vacuum Pump: | Pair with LS-RV-12, LS-RV-18, LS-RV-25, or LS-RV-36, CRVpro16, CRVpro24, CRVpro30 | Pair with LS-RV-12, LS-RV-18, LS-RV-25, or LS-RV-36, CRVpro16, CRVpro24, CRVpro30 | Pair with LS-RV-12, LS-RV-18, LS-RV-25, or LS-RV-36, CRVpro16, CRVpro24, CRVpro30 | Pair with: LS-RV-18, LS-RV-25, LS-RV-36, LS-RV-50, CRVpro16, CRVpro24, CRVpro30 |
| Cold Trap: | Glass: LS-DCT-2HE
Mechanical: MAXTRAP 105 |
Glass: LS-DCT-2HE
Mechanical: MAXTRAP 105 |
Glass: LS-DCT-2HE
Mechanical: MAXTRAP 105 |
Glass: N/A
Mechanical: MAXTRAP 105 |
| Liquid Circulator: | MX07R, SD07R, AD07R, K-6, CD-200F | MX07R, SD07R, AD07R, K-6, CD-200F | MX07R, SD07R, AD07R, K-6, CD-200F | MX07R, SD07R, AD07R, Kiss K-6, CD-200F
Chiller Temp. Requirement: 32°F, 0°C or below |
| G3/G3X Electrical Parameters: | 5L | 12L | 20L | 20L G3X-R |
| Heating Mantle: | 1150w, 120V, 10 amps/ EU 950w, 230V, 5 amps
Max temp: 260°C (PTFE/PFA temp. limit) |
1750w, 120V, 15.2 amps / EU 1750w, 230V, 7.7 amps
Max temp: 260°C (PTFE/PFA temp. limit) |
1750w, 120V, 15.2 amps / EU 1750w, 230V, 7.7 amps
Max temp: 260°C (PTFE/PFA temp. limit) |
1750w, 120V, 15.2 amps / EU 1750w, 230V, 7.7 amp
Max temp: 260°C (PTFE/PFA temp. limit) |
| Stirring Motor: | 110 – 240V, 50/60 Hz, 2 amps. Speed Range: 100 – 1850 RPM | 110 – 240V, 50/60 Hz, 2 amps. Speed Range: 100 – 1850 RPM | 110 – 240V, 50/60 Hz, 2 amps. Speed Range: 100 – 1850 RPM | 110 – 240V, 50/60 Hz, 2 amps. Speed Range: 100 – 1850 RPM |
| Vacuum Monitoring: | 100 – 240V, 50/60 Hz, 0.3 amps
Range: 1 mTorr – 760 Torr |
100 – 240V, 50/60 Hz, 0.3 amps
Range: 1 mTorr – 760 Torr |
100 – 240V, 50/60 Hz, 0.3 amps
Range: 1 mTorr – 760 Torr |
100 – 240V, 50/60 Hz, 0.3 amp
Range: 1 mTorr – 760 Torr |
| Temperature Monitoring: | 100 – 240V, 50/60 Hz, 1 amp | 100 – 240V, 50/60 Hz, 1 amp | 100 – 240V, 50/60 Hz, 1 amp | 100-240V, 50/60 Hz, 1 amp |
Compliance
Complete System
Peer-Reviewed, GMP Compliant
Heating Mantles
CSA
CAN/CSA C284101, C22.2 No. 88
Temperature Controller
NRTL, QPS, CE, Constructed with 100% UL and CSA listed parts.
UL 61010-1; 61010-2-201
CAN/CSA 61010-1, C22.2
Temperature Monitor
CE, Constructed with 100% UL and CSA listed parts.
Stir Controller
CE, Constructed with 100% UL and CSA listed parts.
Vacuum Monitor
RoHS / CE / NRTL
Glassware
Meets ASTM specification E438, type 1, class A, Kimble Kimax or Schott Duran Glass
Warranty Information
Training
Precision offers the following on-site product installation and training with experienced extraction technicians:
- Extract Product Engineering
- Distillation Prep
- Distillation Training
