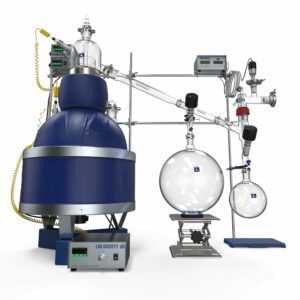

The Discharge Pump Kit (DPK) is designed to be paired with G3 or G3X short path distillation systems. The DPK upgrades the system for continuous output of the heads, main body distillate, and tails fractions from the short path system.
This improves the overall discharge speed of the system and makes it easier to collect fractions, as you do not have to stop the system to swap or adjust receiving flasks.
The DPK employs a gear pump to discharge distillate out of the short path system. The gear pump has a heated head with temperature control to maintain flowability, as well as a motor controller to control the flow rate of the pump. The included distribution adapter with ball joint serves as a small sight glass prior to entry into the gear pumps.
Features
- Temperature controller gear pump
- Independent motor speed controller with flow rate calculation
- Heated gear head with temperature control for viscous fluids
- Single Distribution Adapter with 29/42 top outer joint, 35/20 inner bottom ball joint w/ o-ring, and 29/42 inner side-arm
- Pinch clamp for secure connection to gear pump
Specifications
Compliance
Warranty Information
Documents
Training
More information
