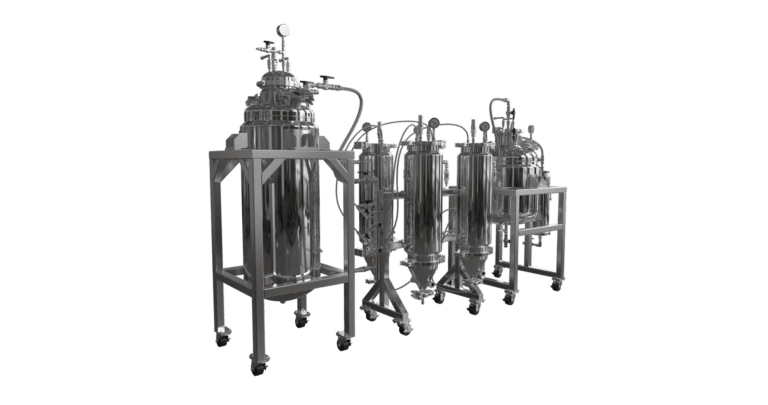

Features
- Approximately 100 L, 30-36 lb average material capacity per batch*
- Four material vessels
- Vacuum jacketing on solvent vessel with an internal cooling coil
- Expansion column designed for desiccant assisted moisture removal
- Inline dewaxing
- 1/2″ PTFT/SS feed hosing (UL-21 compliant)
- N2 assisted extraction up to 200 PSI
- Baffled jacketing on collection vessel
- Viton/PTFE gaskets
- AN compression fittings
- Polished SS components
*Chiller Pairing Recommendations Huber Unistat 815, Julabo equivalent, or better
Specifications
DIMENSIONS
184″ L x 44″ W x 83″ H
WEIGHT (approx.)
2,150 lb
SHIPPING WEIGHT (approx.)
3,000 lb
MAWP
250 PSIG
Hydrocarbon Specifications
- Volatile, EPR reviewed, closed loop, Type 7 process for licensed operations (when used
with hydrocarbon solvent) - Compatible with singular and mixed hydrocarbon solvents for superior extraction
capability and product production - Approximate 45 minutes processing time per run (single material column)
- Approximate 2 hours processing time per run (4 material columns)
- Certified for Class 1, Division environments
- 97% cannabinoid and terpene removal
- Customized hydrocarbon extraction for high end product production, e.g., HTFSE,
THC-a crystalline and “Sauce”
Compliance
- PSI certified in all 50 states
- ASME-U
- NFPA 58 LPG
- Class 1, Division 1 Compliant
- Trans-fill approved per NFPA
- Compliant in all regulated jurisdictions*
- Engineer peer reviewed for all Type 6 & Type 7 licenses
- CRN registered in Ontario, British Columbia, and Quebec
- The end user shall consult with their local regulatory authority prior to start-up to ensure local piping requirements of the installation are met.
- Please inquire with our sales team as to the status of other pending Canadian province approvals.
Pre-Approved for Easy Certification
Our X40 MSE Cannabis Extraction Equipment is pre-approved and ready for professional engineers to field verify in all 50 states, so you can get operational faster. In partnership with PSI (Pressure Safety Inspectors), our extractors come with a PSI technical report certification and a field verification voucher to meet your state and local regulations.
Once your system is installed by Precision Technician, simply call PSI and schedule your field verification. Simple as that!
Warranty Information
- Warranty** One-Year
Documents
Training
Precision offers the following on-site product installation and training with experienced extraction technicians:
- Install & Basic Training
- Craft Concentrates Training
- Inline Color Remediation
- Extract Product Engineering
