This Refrigerated/Heating Circulator is the next generation of circulators from Julabo.
The hallmark of these units is an exceptional price-to-performance ratio, making them an attractive solution for many laboratories. Rest assured, these circulators can handle all the routine work your laboratory can throw at them.
High-quality construction.
The fine craftsmanship of these refrigerated/heating circulators limits energy loss, thanks in part to the high-quality insulation.
Efficiency was top-of-mind at every stage during the creation and production of these circulators.
Stay safe and stable.
Each unit has a locking power plug and rubber feet which ensures minimal unwanted movement and reduces the chance of accidentally disconnecting the power.
Keep it exact, keep it clean.
With the PID1 controller (and active cooling control), achieving precision has never been easier.
When the units need to be cleaned, Julabo’s made it easy: With a removable, magnetic front grid, simply remove the grid and get cleaning – no tools required.
Loaded with features:
- Bright display – for easy reading
- Insulated parts – for user protection against temperatures
- Ready for operation in just a few steps
- Integrated timer
- Larger bath size
- Easily change between external and internal circulation with the flip of a switch
- Front-located controls
- Easily moved with handles front and rear
- Special drain tap – makes emptying the reservoir a cinch

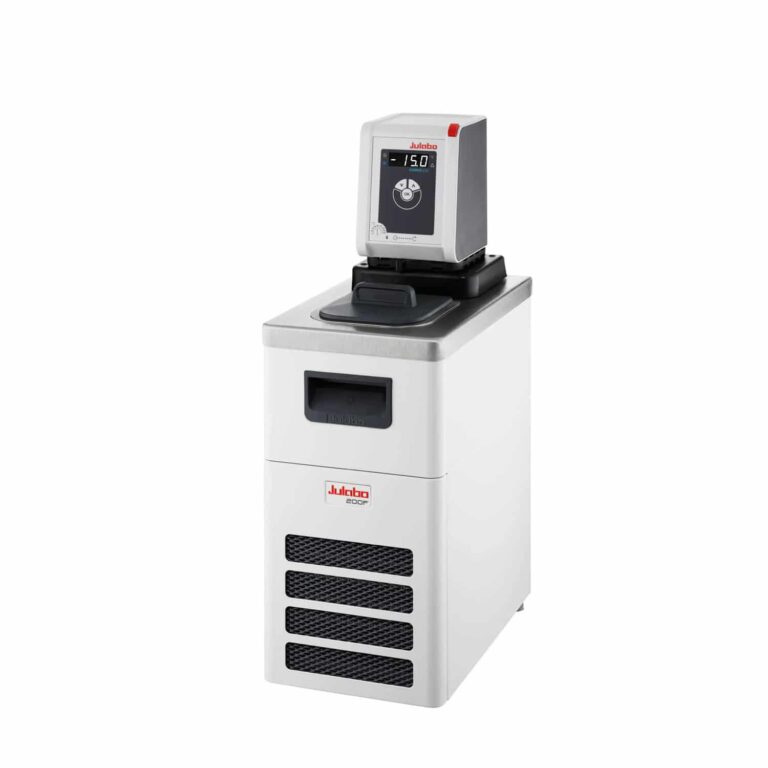

Model:CD-200F
Specifications
Model | CORIO |
Type | Refrigerated/Heating Circulator |
Temperature control | PID controlled |
Temperature stability | ±.03 |
Working temp. range | -20 to +150 ¡C |
Display | LED |
Display resolution | .01 to .1 ¡C |
Heating capacity | 2 kW |
Cooling capacity | at 20 ¡C/ .22 kW |
Flow rate l/min | 15 |
Flow pressure | .35 bar |
Pump connection | M16x1 |
Bath size | 13 x 15 / 15 (W x L / D cm) |
Barbed fitting | 8/12 (inner diameter / mm) |
Bath volume | 3 to 4 liters |
Refrigerant | R134a |
Working ambient temp. | 5 to 40 ¡C |
Weight | 26 kg |
Bath tank and cover | Stainless steel/ intergrated |
Cooling for compressor | Air |
Included | 2 each barbed fitting for tubing 8 and 12 mm inner dia. (pump connections M16x1 male) |
Suggested applications:
- Temperature control of samples in a circulator bath
- Temperature control of an external application
For example:
- Measuring cells, refractometers, polarimeters, photometers, viscometers, fermenters, electrophoresis chambers, chromatography columns, rotary evaporators, rheometers, and more.
