Distribution Adapter

$160.00$1,196.80

SKU:LS-DS-MXP

Our Inline Distribution Adapters create a seamless experience when depositing distillate into collection flasks.

Whether you need to replace an existing piece from your short path kit, or want a spare on hand, we carry multiple options for you to choose from.

Not sure which option is best for you? Contact us here.

x

Single Arm Distribution Adapter, Extended Condenser (LS-DS129-29E) :

Included in all of our G3, G3X and G3X-R Kits, the single distribution adapter allows you to easily catch a single fraction while letting unwanted portions flow by with a simple twist.

Single Arm Distribution Adapter with Vacuum Take-off Valve (LS-DS129-29V) :

Included with our G3X short path kits, this adapter utilizes a vacuum take-off valve which gives the user the ability to isolate collected fractions, collect larger volumes, and collect unlimited fractions.

These valves are designed to sit below the vapor path, reducing contamination, while maintaining deep vacuum for efficient distillations.

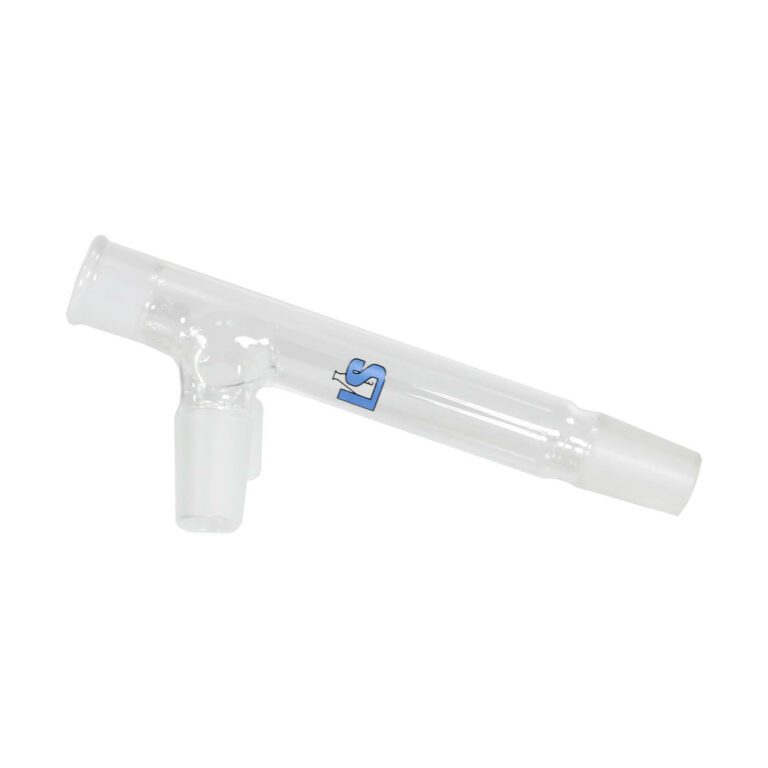

Dual Arm Distribution Adapter, Extended Condenser (LS-DS229-29E) :

Included in all of our G3, G3X and G3X-R Kits, the dual distribution adapter allows you to rotate the adapter to catch a particular flask depending on which fraction you would like to collect.

Features

Specifications

Single Arm Distribution Adapter, Extended Condensers (LS-DS129-29E) :

  • One (1) Outer Top Joint (Female)
    29/26
  • One (1) Inner Bottom Joint (Male)
    29/42
  • One (1) Distribution Joint (Inner Side-arm)
    29/42

Single Arm Distribution Adapter with Vacuum Take-off Valve (LS-DS129-29V) :

  • One (1) Outer Top Joint (Female)
    29/26
  • One (1) Inner Bottom Joint (Male)
    29/42
  • One (1) Distribution Joint (Inner Side-arm)
    29/42
  • One (1) Vacuum Take-off Valve
    20mm
  • GL-14 Cap for Vacuum Release

Dual Arm Distribution Adapter, Extended Condensers (LS-DS229-29E) :

  • One (1) Outer Top Joint (Female)
    29/26
  • One (1) Inner Bottom Joint (Male)
    29/42
  • Two (2) Distribution Joints (Inner Side-arm)
    29/42
