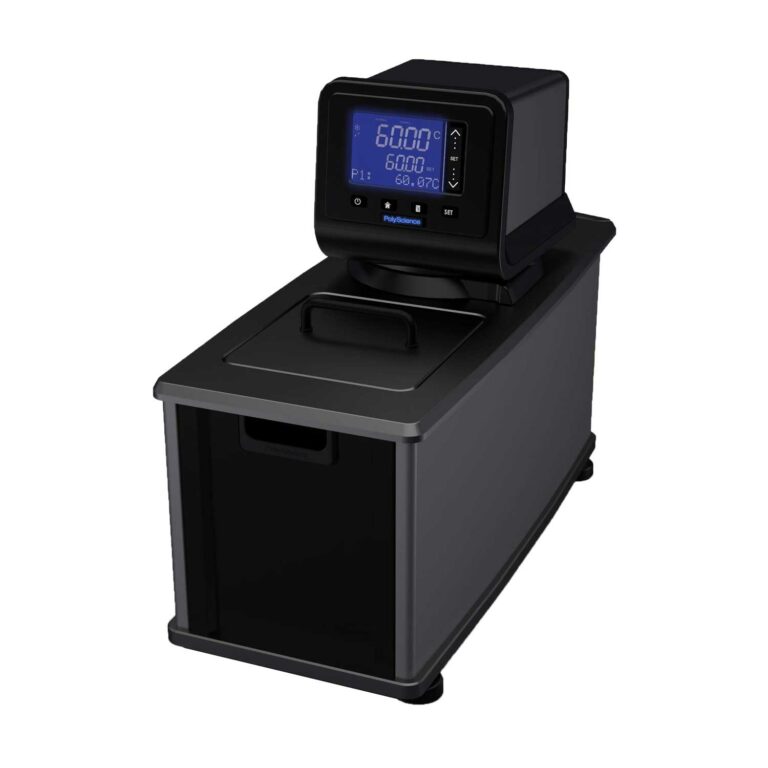

The 7 liter heated circulator allows you to accurately heat your reaction vessel or condenser, from +10° up to 200°C.
With its advanced digital display, you can see everything you need to know at a glance.
*Note: The included nylon hose adapters are: 3/8″, 1/4″ and 3/16″.
- Touch-pad control
The advanced touch display lets you change operation parameters quickly with the touch of a button.
- Swivel 180 screen technology
The screen will face towards you, no matter how the circulator is oriented in your lab. - Connectivity
Quickly and easily connects to your computer, so you can remotely maintain/control temperature while recording data for future runs. - On-screen prompts
visual alerts for all your important information - Event scheduling
has a real-time clock and keeps temperature trends for up to 10 days - Differential temperature setting
allows you to take measurements from multiple places and adjust the temperature based on loss or gain from point x to y.
Model: AD07H200-A11B
Specifications 60 Hz model
| Max pressure | 4.3 PSI (.30 bar) |
| Max Flow rate | 5.30 GPM (20.1 LPM) |
| Max Suction rate | 3.9 GPM (14.7 LPM) |
| Heater Wattage | 1100 Watts |
| Electrical Requirements | 120/60/1/10 (VAC/Hz/Ph/A) |
Temperature
| Working range | Ambient + 20¡ to 392¡F (Ambient +10¡ to 200¡C) |
| Stability | ± 0.02¡F (± 0.01¡C) |
| External temperature control | Yes |
| Max Ambient Temperature | 95¡F (35¡C) |
Reservoir
| Capacity | 1.85 gal or 7L |
| Material | Stainless Steel |
| Cover, top and lid lock | Included |
Display
| Display | 3.75″ Touch-Pad LCD |
| Set resolution | 0.01 |
| Read resolution | 0.01 |
Pump
| Type | Pressure/Suction |
| Speed | Variable |
| Connections | 1/4″ (F) NPT |
Safety
| Flammability Class | III (FL) |
| Over-Temperature Protection | Yes |
| Low Liquid level sensor | Yes |
| Reservoir Drain | Yes |
| Cooling coil | Yes |
Dimensions
| Overall Dimensions Inches (cm) | 19.6 x 8.7 x 16.1 in ( 49.9 x 22.1 x 40.9 cm) |
| Shipping Weight Lb (Kg) | 42 (19) |
Compliance
| Environmental | RoHS, WEEE |
| Electrical | ETL |
